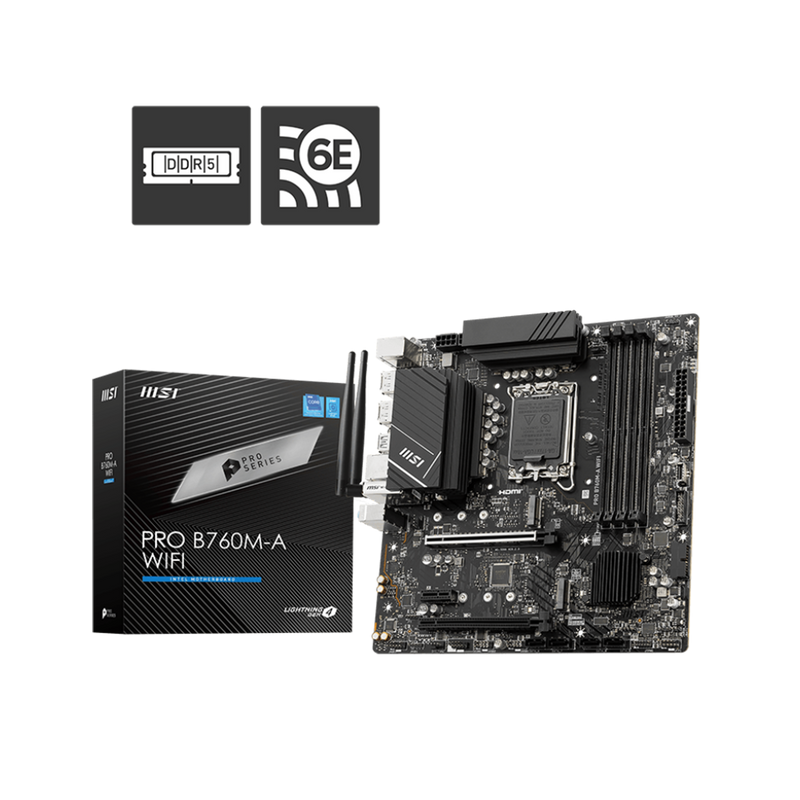

PRO B760M-A WIFI DDR5 motherboard with its packaging box displayed on a black background.

MSI PRO B760M-A WIFI DDR5 Motherboard

RM769.00

RM769.00 - RM769.00

RM769.00

Translation missing: en.product.general.barcode_html

Quantity

If you purchase now (2024-05-20 00:57) , you will receive your order between 22 May - 23 May (pre-order items excluded) .

Payment Methods

Supports 12th/13th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Document

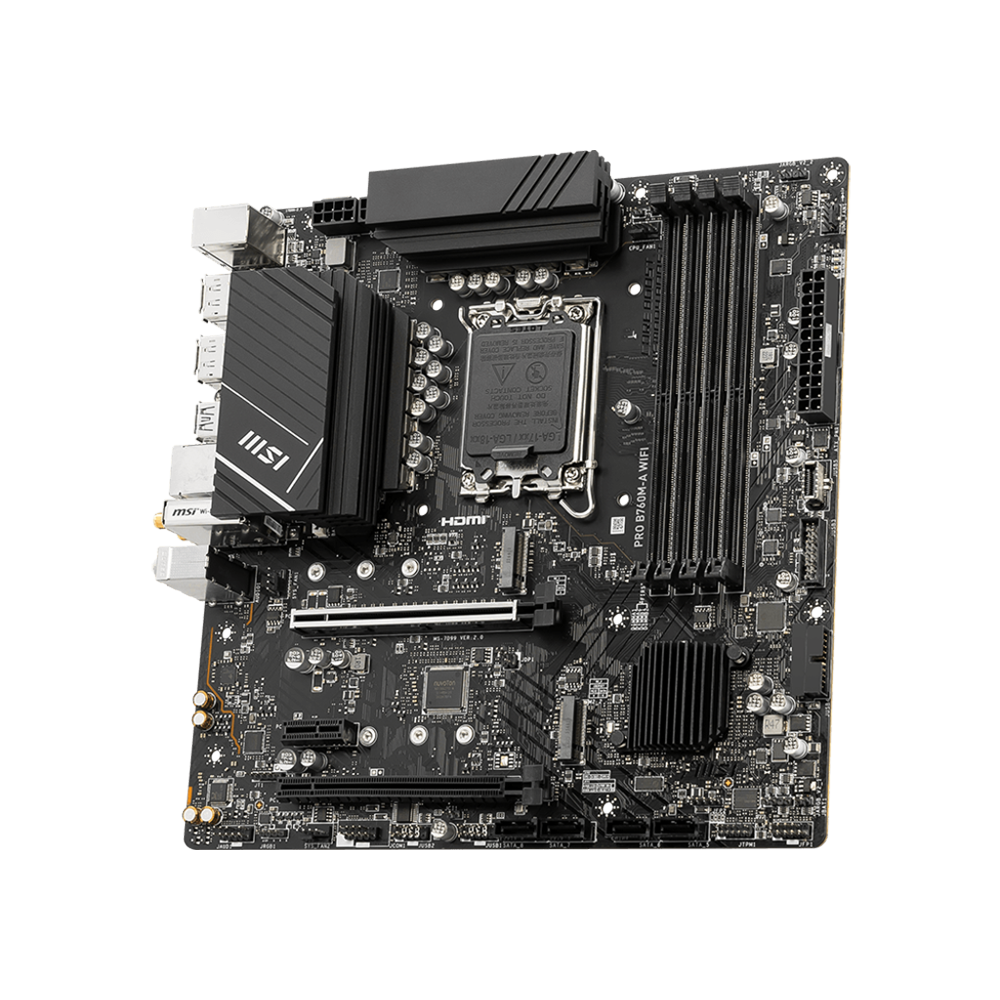

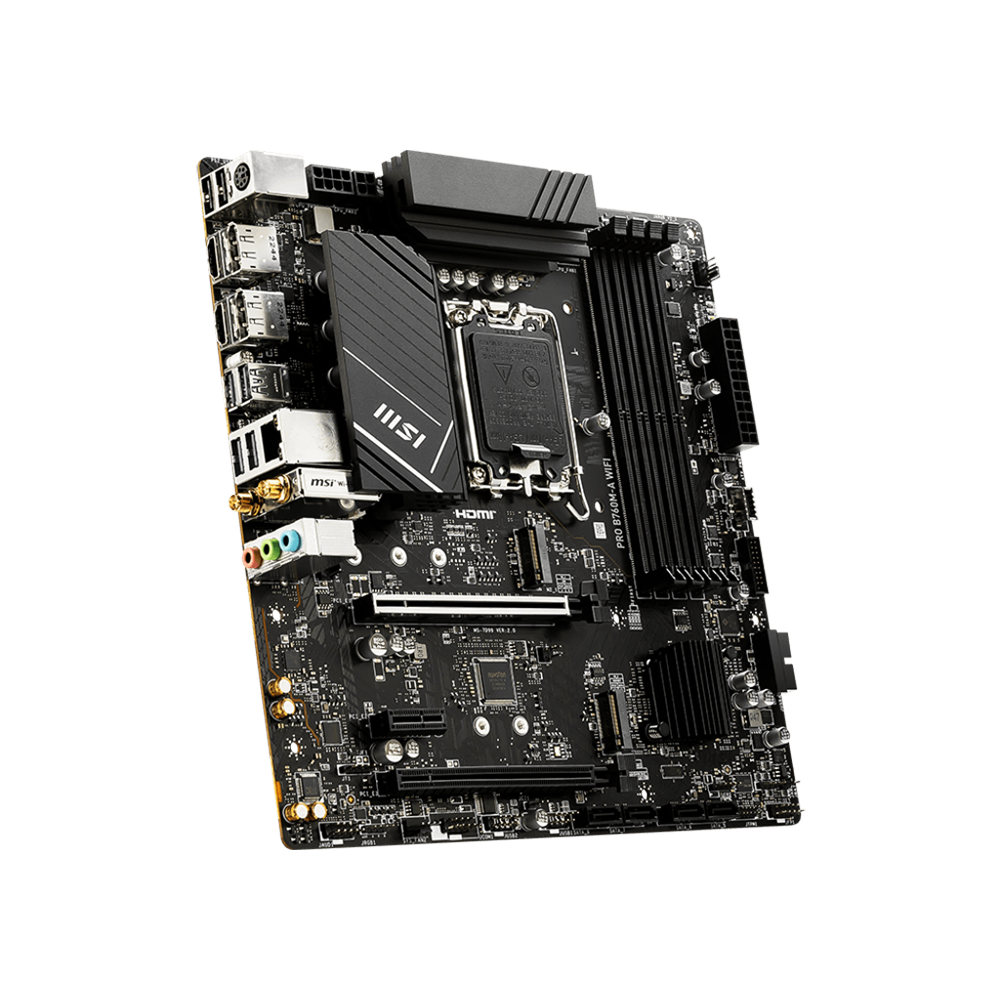

PRO B760M-A WIFI DDR5 Motherboard

Business Elegance

The PRO B760M-A WIFI is a business-oriented Micro-ATX motherboard featuring the latest Intel B760 chipset that supports ample RAM capacity.

PRO B760M-A WIFI DDR5 Motherboard Intel 12th and 13th Generation Processing Power

Supports Intel Core 12th & 13th Gen Processors

The PRO B760M-A WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: Micro-ATX

Socket Type: LGA 1700

Chipset: Intel B760

PRO B760M-A WIFI DDR5 Motherboard CPU power system exclusive technology

12+1 Duet Rail Power System with P-PAK

With its 8 pin + 4 pin power connectors and exclusive Core Boost technology, the PRO B760M-A WIFI is able to sustain heavy CPU power loads to support system-demanding work settings:

1. Digital PWM IC

2. 12-Phase Duet Rail CPU Power (P-PAK)

3. 1-Phase GT Power

4. 1-Phase AUX Power

PRO B760M-A WIFI DDR5 Motherboard Internal Cooling System

Integrated Cooling Features

VRM Cooling: Features an extended heatsink, 7W/mK MOSFET thermal pads and additional choke thermal pads for improved thermal dissipation.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures

PRO B760M-A WIFI DDR5 Motherboard Dual Channel for gaming

4 x DDR5 Dual Channel (6800 MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 6800+ MHz, supports Intel XMP.

PRO B760M-A WIFI DDR5 Motherboard PCI-e internal slot

Fortified PCIe 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

2 x PCIe 4.0/3.0 x16 slots* (primary slot with Steel Armor)

1 x PCIe 3.0 x1 slot

*Supports x16/x4
