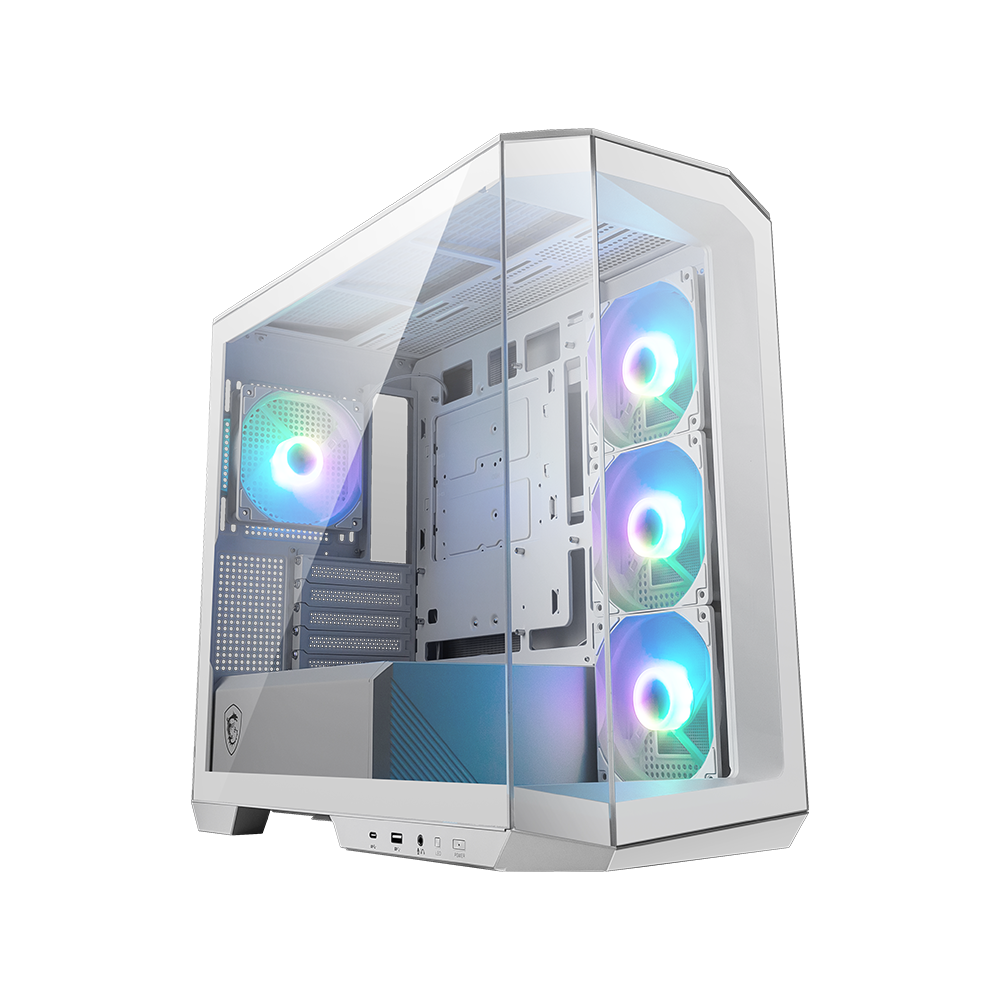

MSI MAG PANO M100R PZ (ATX) White Gaming Case

RM469.00
Original price RM469.00 - Original price RM469.00
Original price
RM469.00 - RM469.00
Current price RM469.00

If you purchase now (2024-11-02 06:29) , you will receive your order between 04 Nov - 05 Nov (pre-order items excluded) .

Payment Methods

    Visa Mastercard

Product Specifications :

  • Micro-ATX Back-connect PROJECT ZERO motherboard supported.
  • Supports up to 360 mm AIO liquid cooler on the top.
  • 270-degree panoramic tempered glass.
  • Supports up to 10 x 120 mm system fans.
  • Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects.
  • The Magnetic Dust Filter at the bottom being easily removed for cleaning.
  • DIY Friendly cables make your DIY process easier and create more possibilities to your system.
Discover the sleek and powerful MSI MAG PANO M100R PZ White Gaming Case. Engineered for performance and style, this chassis offers ample space for high-end components and advanced cooling solutions. Elevate your gaming setup with the perfect blend of aesthetics and functionality.

A New Turning Point

The MAG PANO M100R PZ WHITE comes with a 270-degree tempered glass panel and is compatible with a Back-connect motherboard, adding to the aesthetically pleasing and cleanliness of your PC build while enhancing its overall aesthetics and organization. MAG PANO M100R PZ WHITE offers spectacular ambient illumination with 3 x 120 mm Reverse-blade ARGB PWM intake fans and 1 x 120 mm ARGB PWM exhaust fan pre-installed.

Step into the world of gaming excellence with the MSI MAG PANO M100R PZ White Gaming Case, where every detail is crafted for maximum performance and style.dot

Organize Easily

Supporting Back-connect motherboards not only simplifies the installation process but also makes it easy for cable management. Additionally, it prevents interfering with cables in front of the motherboard, keeping the interior of the case a lot cleaner.

The Velcro straps help to tie the cable easily.

MSI MAG PANO M100R PZ White Gaming Case Easy Setup For GPU Mini-ITX Micro-ATX While Boasting Impressive Lit Fan dot

Extensive Compatibility

Motherboard support: Micro-ATX (Back-connect and general motherboard compatible) and Mini-ITX (general motherboard compatible). Component clearances:

  • CPU Cooler height: 175 mm
  • GPU Length: 390 mm
  • PSU Length: Up to 200 mm

Storage options:

  • 1 x 2.5" SSD
  • 1 x 2.5"/3.5" SSD combo bay
Stay cool under pressure with extensive cooling options in the MSI MAG PANO M100R PZ WHITE Gaming Case. Pre-installed with four ARGB PWM fans, including three 120mm reverse-blade and one 120mm, it offers additional slots for top, rear, PSU shroud, and bottom fan configurations for optimal airflow and temperature management.

Extensive Cooling Support

The MAG PANO M100R PZ WHITE pre-installed with 3 x 120 mm Reverse-blade ARGB PWM fans and 1 x 120 mm ARGB PWM fan, other fan cooling options include:

  • Top: 3 x 120/2 x 140 mm fans
  • Rear: 1 x 120/140 mm fan
  • PSU shroud: 2 x 120 mm fans
  • Bottom: 1 x 120 mm fan
Easily control and synchronize your ARGB fans with the pre-installed 1-to-4 ARGB-PWM control board in the MSI MAG PANO M100R PZ WHITE Gaming Case. With support for additional ARGB fan connections, intuitive lighting profiles, and compatibility with Mystic Light utility via MSI motherboards, customization has never been easier.

1-to-4 ARGB-PWM Control Board

The pre-installed 1-to-4 ARGB-PWM control board supports extra ARGB fan connections to the case. It supports intuitive control & lighting profiles through the LED switch button, and is also compatible with the Mystic Light utility via MSI motherboards.

  1. 3-pin ARGB connector
  2. 4-pin PWM connector
Experience a 270-degree panoramic display with reinforced glass design in the MSI MAG PANO M100R PZ WHITE Gaming Case, offering an unobstructed view of internal components for a seamless showcase.

270-Degree Panoramic Display

This case features a 270-degree reinforced glass design, providing a panoramic view of the interior without obstructive metal at the corners, ensuring a seamless showcase of internal components.

Simplify cable management with 33mm routing space and pre-installed Velcro strips in the MSI MAG PANO M100R PZ WHITE Gaming Case, ensuring easy assembly and tidy cable organization.

Assemble for Cable Mangement

33mm cable routing space & pre-installed cable Velcro strips for easy to do cable management.

Enjoy hassle-free installation with tool-free top removal and convenient maintenance with magnetic dust filters in the MSI MAG PANO M100R PZ WHITE Gaming Case, featuring multiple inlets for efficient airflow.

Multiple Inlets & Filters

The tool-free top removable design ensures effortless installation, while the bottom of this case features a magnetic dust filter for easy removal and cleaning.

Experience versatile connectivity with the side I/O panel of the MSI MAG PANO M100R PZ WHITE Gaming Case, featuring a high-speed USB 3.2 Gen 2x2 Type-C port, USB 3.2 Gen 1 Type-A port, mic in/audio out, LED switch button, and power button.

Side I/O Connectivity

The side I/O panel features a USB 3.2 Gen 2x2 Type-C port for high-speed 20Gbps data bridging to compatible motherboards.

  1. 1 x USB 3.2 Gen 2x2 Type-C (20Gbps)
  2. 1 x USB 3.2 Gen 1 Type-A (5Gbps)
  3. Mic in / Audio out
  4. LED Switch Button
  5. Power Button

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
100%
(1)
0%
(0)
0%
(0)
C
Chu Siang Foo
Specification does not match

Spec mention it support 3.5 HDD, but after mounting the HDD, the back cover cannot be closed. Pre-installed fan controller board is conflicting with 2.5/3.5 drive install at the back. Front panel usb L shape connecting head no compatible with non back-connected mobo, at least I can't install on mine.
These are design flaws.. but over quality is good.
