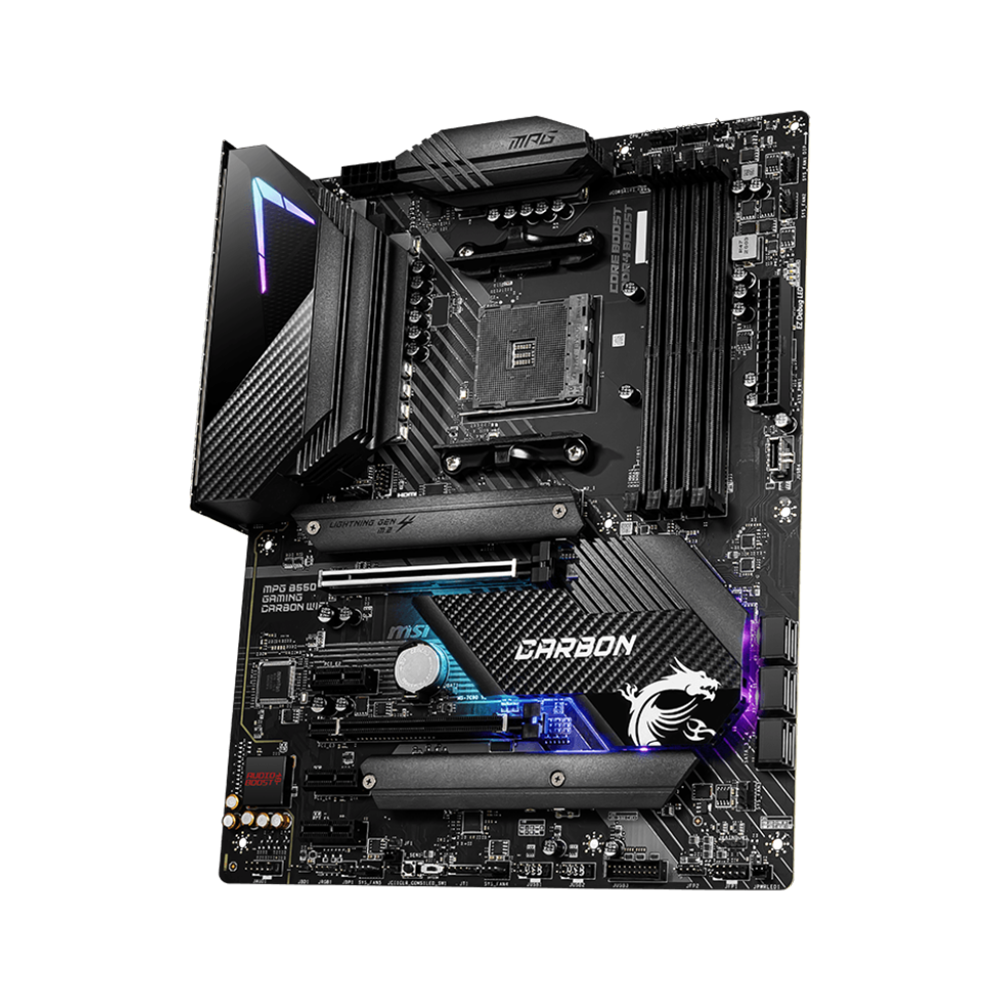

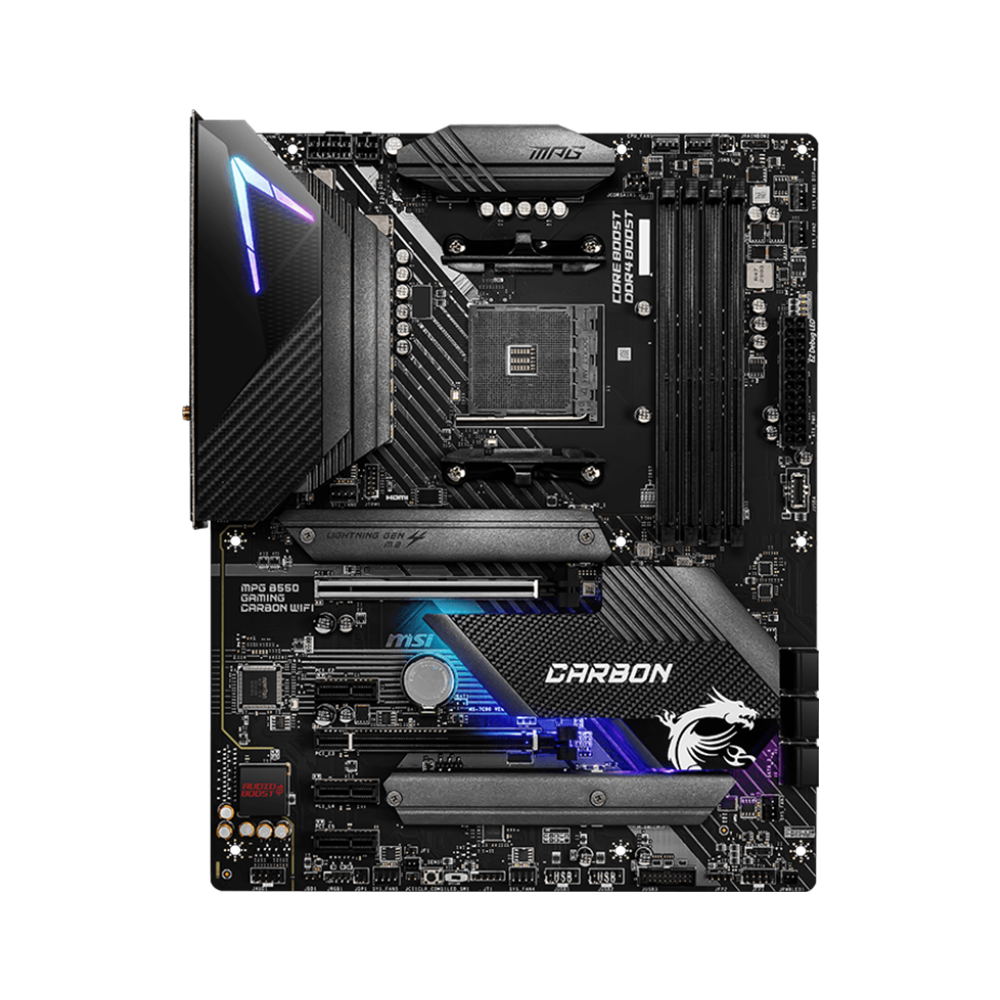

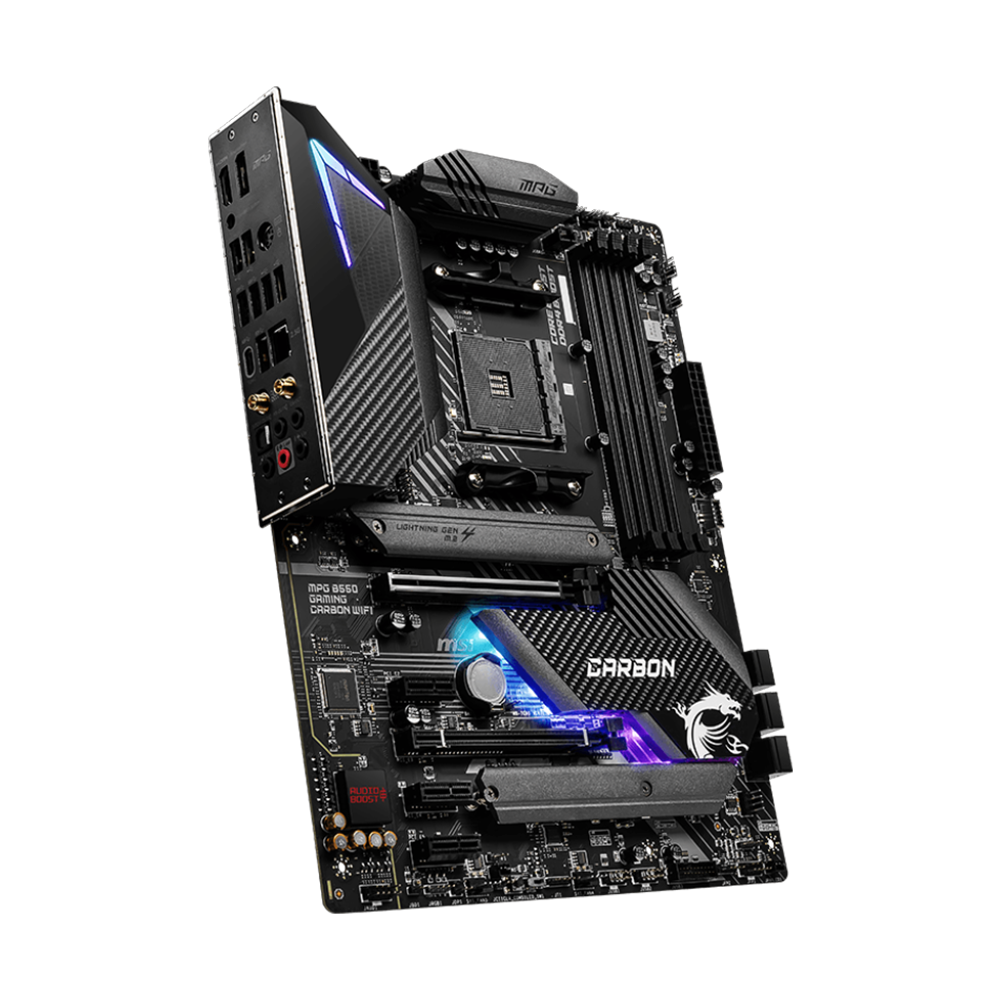

| MPG B550 GAMING CARBON WIFI |
| EXCLUSIVE FEATURE |
|
 |
 |
Core Boost Technology
Combining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance. |
|
 |
6 layer PCB
6 layer PCB provides higher performance and long-lasting system stability without any compromise. |
|
 |
2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and performance reliability. |
|
|
 |
Digital PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions. |
|
 |
PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength. |
|
|
|
|
|
| MPG B550 GAMING CARBON WIFI |
| PREMIUM THERMAL SOLUTION |
|
 |
 |
Aluminum Cover
All-metal extended heatsink cover enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed. |
|
 |
Heatsinks with Additional 7W/mK Choke Thermal Pad
7W/mK thermal pad provides better heat transfer to the heatsink. |
|
 |
M.2 Shield Frozr
The Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. |
|
|
 |
Pump Fan Support
Control watercooling pump speeds for best flow and noise control. |
|
 |
Enlarged Chipset Heatsink
Larger heatsink for chipset ensures better heat dissipation and cooling effects. |
|
|
|
|
|
| MPG B550 GAMING CARBON WIFI |
| HIGH-SPEED TRANSMISSION |
|
 |
 |
Turbo USB
Featuring the TURBO USB 3.2 Gen 2 10Gbps with reversible Type-C connector. |
|
 |
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience. |
|
 |
Intel Wi-Fi 6
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. |
|
|
 |
DDR4 Boost
The Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance. |
|
 |
Lightning Gen 4 Solution
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. |
|
|
|
|
|
 |
| LIGHTNING GEN 4 SOLUTION |
| The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. |
|
|
 |
| 12+2 DIGITAL POWER with DOUBLER DESIGN |
| Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 8 + 4-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work. |
|
|
 |
| THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE |
| All Aluminum Cover with additional choke thermal pad rated for 7W/mK level and M.2 Shield Frozr ensure best cooling effects and low temperature. |
|
|
 |
| PCB WITH 2OZ THICKENED COPPER |
| An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. |
|
|
 |
| CUSTOMIZE YOUR GAMING RIG |
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.
- Customize colors
- Customize effects
|
|
|
 |
| MAXIMIUM DATA TRANSFER WITH 2.5G LAN |
| MPG B550 GAMING CARBON WIFI features high-bandwidth and low-latency Ethernet networks for demanding gamers and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency. |
|
|
 |
| WI-FI 6 & BLUETOOTH |
| Use your LAN port for online gaming while using WiFi for other online applications. The Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps. |
|
|
 |
| Core Boost |
| Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while doing. |
|
|
 |
| UNMATCHED MEMORY PERFORMANCE |
| MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing. |
|
|
 |
| MULTIPLE GPU SUPPORTS AND STEEL ARMOR |
| MPG B550 GAMING CARBON WIFI supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience. |
|
|
 |
| AMPLIFY YOUR GAME WITH AUDIO BOOST |
| Like a dedicated sound card, Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. |
|
|
 |

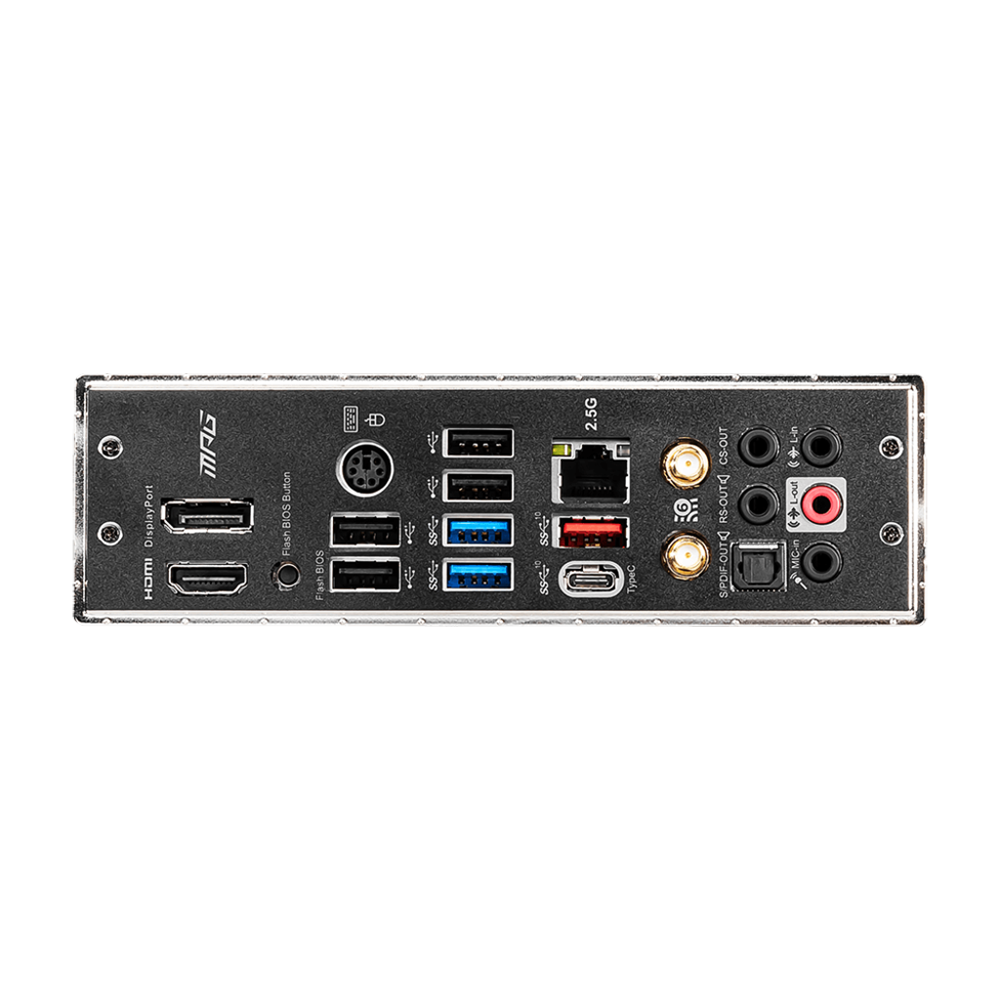

| USB Type-C ready in both Front case panel & Rear IO |
| Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices. |
|
|
 |
| EZ LED CONTROL FOR RGB CUSTOMIZATION |
| A built-in LED button on the motherboard to control your light effect in a second. Use EZ LED CONTROL to show million of colors or turn off lights right away. |
|
|
|
